Hybrid Fan (Big size)

Product information

No electricity consumed and CO2 emssions fan

Product Video:

Product Specifications:

  Item name   Hybrid Fan (Big size)
  Item code   HBF-FJRCW
  Dimension   Diameter: 1100 mm
  Height: 102 mm
  Diameter range   900 mm - 1100 mm
  Main structural components   Blade brackets: Aluminium
  Blades, bottom cover: Plastic

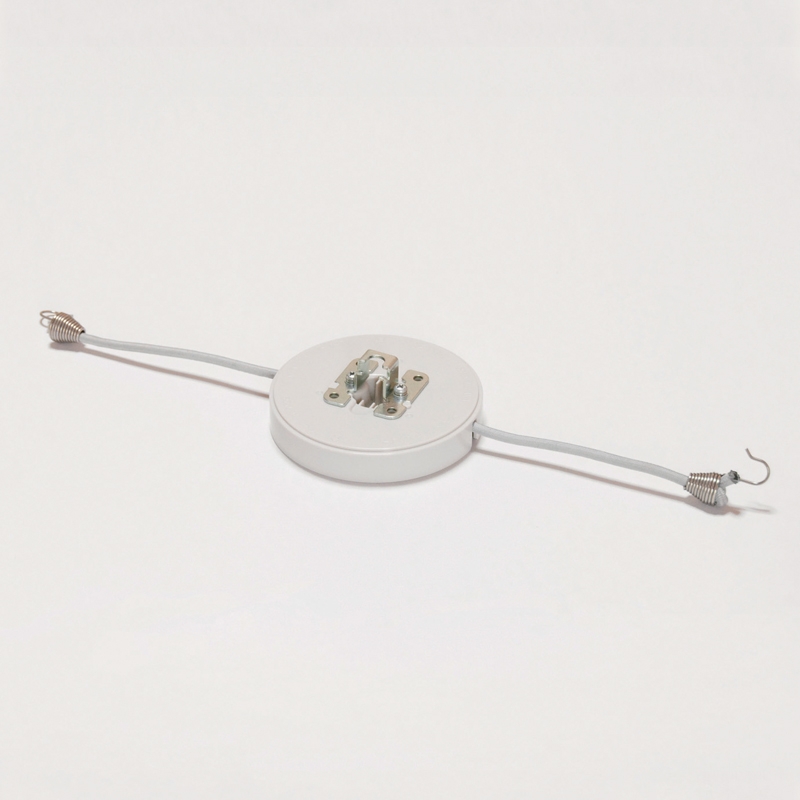

  Hook set, main body, bolts, screws, steel
  Weight   Main components ≈ 795g
  Hook set ≈ 240g
  Compatible air vent cover   Air vent cover (big size)
  Package   1/10 inner/outer
  Color   Clear



 Outstanding Features

  •  Do not consume electricity
  •  Make the air circulation in a room equable
  •  Avoid direct contact with the air flow of air-conditioner for a long time
  •  Help to reduce the amount of electricity consumed and CO2 emissions

USING THE HYBRID FAN EFFECTIVELY
Hybrid fan is rotated by the air flow from the air-conditioner, not use electricity

Hybrid fan makes the air circulation in a room equable, which does not focus at the same place
Avoid direct contact with the air flow of air-conditioner for a long time
Using Hybrid fan helps to reduce the amount of electricity consumed and CO2 emissions

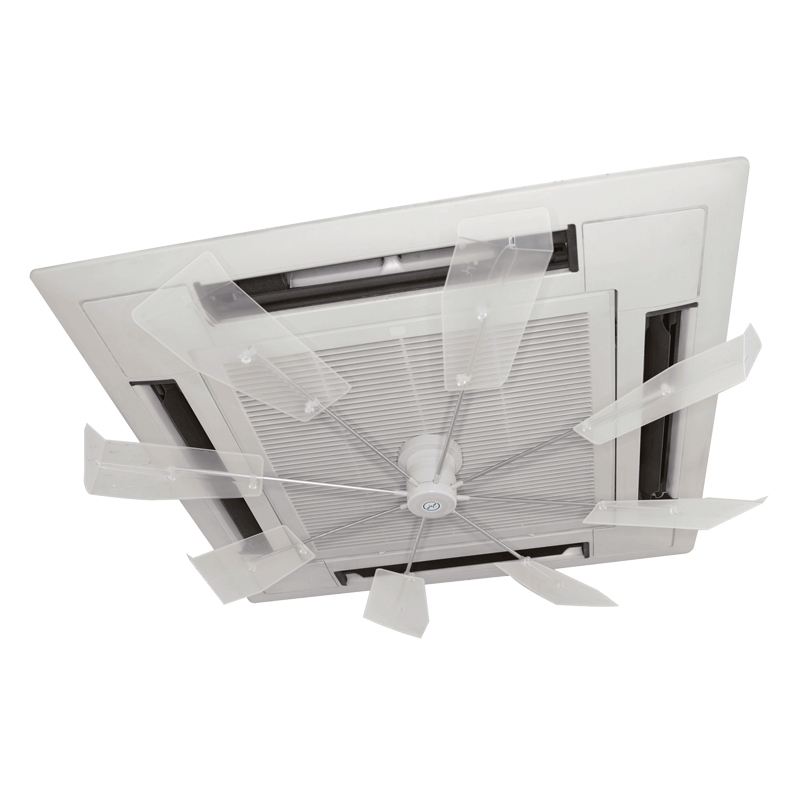

Simply install a fan on the ceiling air conditioner to eliminate the direct air blow from the air conditioner.
Air conditioning efficiency increases, and electricity costs can be reduced.

Because the fan is powered by the air conditioner, there is no electricity bill.
By circulating indoor air, uneven temperature can be eliminated.
As a result, you can turn up/down the air conditioner by 1 to 3 ℃, leading to a reduction in electricity bills and CO2.
The effect depends on surroundings and other conditions.

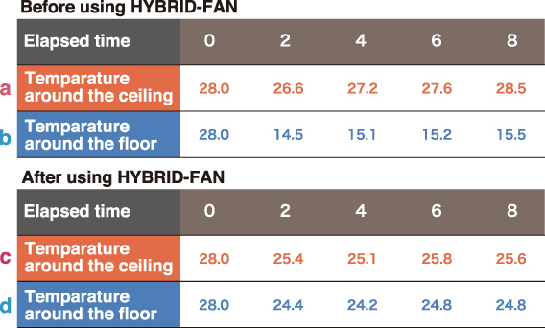

Changes in room temperature (Displays the temperature around the ceiling and floor on a time axis.)



[Measurement conditions]

  • Air conditioner : 3,600w, Width of the room: (W)8 × (D)8 × (H)2.6m
  • Outside temperature: 30℃, Room temperature: 28℃, Preset temperature: 25℃, Ejection temperature: 12~13℃

* Start measurement after operating the air conditioner for 1 hour.
* Measured with radiation thermometer and 2 thermoscopes.
* The data numerical varies on surroundings and other conditions.

SAVE ELECTRICITY BILL   REDUCE CO2 EMISSIONS

<CHANGES IN ELECTRICITY RATES>
Before introduction of hybrid fan 36,720 yen/year*
After introduction of hybrid fan 29,376 yen/year
----------------------------------------------------------------------------
Reduction amount: 7,344 yen/year

Equivalent: 46.75 usd/year

<CHANGES IN CO2 EMISSIONS>
Before introduction of hybrid fan 680.1kg/year*
After introduction of hybrid fan 544.0kg/year
----------------------------------------------------------------------------
Reduction amount: 136.1kg/year

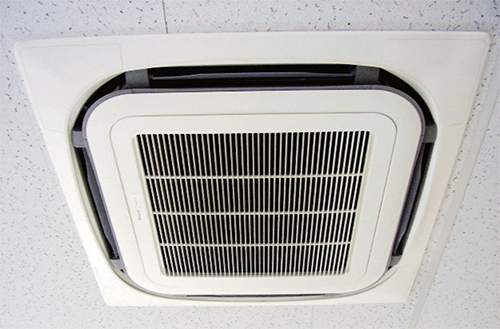

Optimal for air conditioner type


950mmx950mm (Square)


1,100mm~1,700mmx950mm (Retangle)





 |SETTING CONDITIONS
Air conditioner               : 1 horsepower air conditioner/Required power: 0.75kw/h
Occupancy rate             : 68% (100% - 119 days/365 days)・Electricity fee: 25 yen/kwh
Energy reduction rate    : 1℃=10%・CO2 emissions: 1kw/h=0.463kg (TEPCO 2011 results)


* Calculation conditions: Required power 0.75kw/h x 8 hours (1 day) x 30 days x 12 months x Operation rate 68% x Electricity fee 25 yen/kwh (CO2 emissions 0.463kg/kw)
* By using a regular hybrid fan, it is possible to set the air conditioner's temperature approximately 2 degrees closer to the outside temperature.
* When you use a 5 horsepower air conditioner, you can save about 5 times the cost and reduce CO2 emissions.
* Occupancy rates vary depending on the customer's situation.
* Electricity rates vary depending on the contract with each power company.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
* All numerical data is researched by Ushio Co., Ltd.
